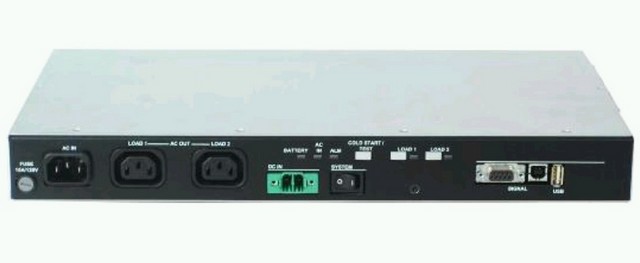

The NP Series power supply is an ideal solution for rugged Perimeter Surveillance, Giant Voice / Indoor Voice Capabilities, Military Vehicles, Mobile Command Centers, traffic applications, or any mission-critical equipment. Delivers continuous powerful solutions enabling preventative measures that mitigate hostile actions towards critical infrastructure.

Category:

Description

TRUE ON-LINE, DOUBLE-CONVERSION TECHNOLOGY

With an optional battery pack, the NP Series operates as a True Online, Double-Conversion UPS that powers the system through utility power interruptions.

RELIABILITY

NOVA Power Solutions delivers power quality in harsh environments ranging from the arctic to the desert, as well as on and under the sea. Our products are designed and manufactured with long-standing performance particularly suited for rigorous applications.

LIFECYCLE

NOVA Power Solutions provides maximum lifecycle benefits from design through sustainment. Our focus on quality and efficiency results in reduced costs and becomes a concentrated value to our customers over the course of an extensive product lifecycle.

KEY FEATURES

  • 1U Vertical Rack Space
  • Small form factor
  • True On-Line, Double Conversion Inverter/UPS
  • Operates in extreme temperature environments
  • Customizable to fit your specific applications
  • MIL-STD 1399, Section 300B

BENEFITS

  • Power Factor Corrected, Wide Input Range
  • True On-Line, sine wave output
  • Designed for non-linear loads
  • Internal Automatic Bypass

SELECT CAPABILITIES

  • Inverter powers load continuously
  • Lightweight aluminum chassis
  • Front Panel Controls and Indicators
  • Front Panel Input/output Connectors
  • Cold Start feature (requires optional battery pack)
  • Integral slide mounts and spacers
  • Internal Automatic Bypass
  • Fits most 19” rack applications
  • USB Communicates with monitoring center or other equipment
  • Optional SNMP Network Agent (SNMPv3 and IPv6)
  • Auxiliary battery trays available for additional run time
  • Optional 24-30VDC and 85-260VAC Input
